CIMETRIX Ltd

DL Type Probe for hardness tester

$325.00
/
Shipping calculated at checkout.

We ship the same day an order is placed.

Monday to Friday.

Except major holidays.

Orders must be placed before the 4pm PST ( Seattle ) cutoff. After the cutoff, orders will ship the following day except on weekends, and major holidays, where the orders placed will ship on the Monday.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

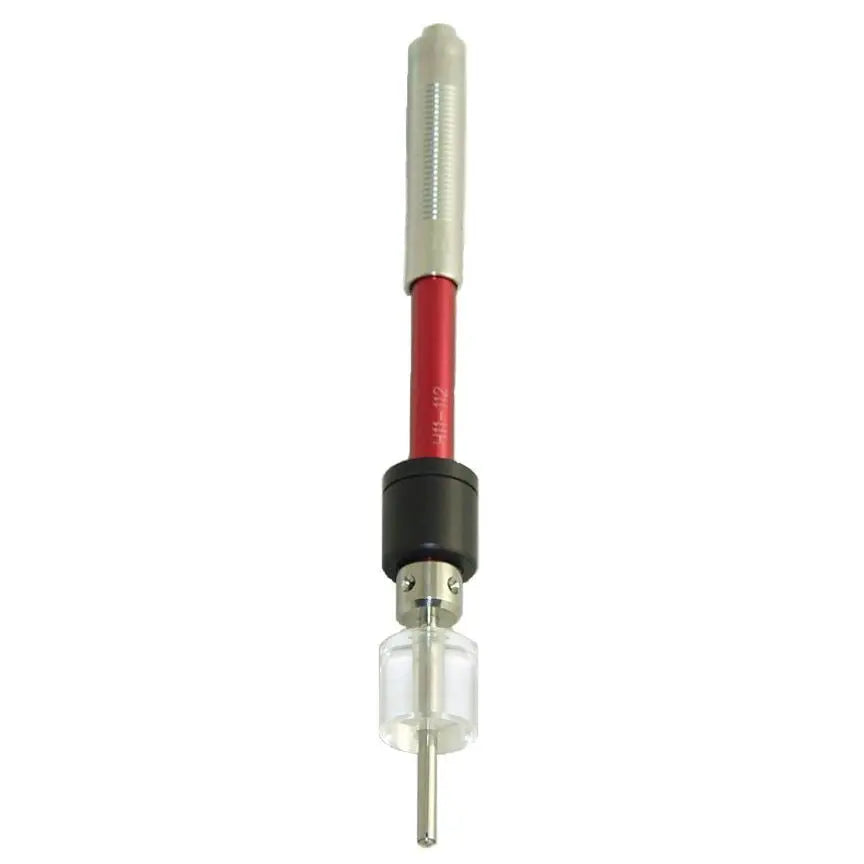

This is the DL - Type Probe to fit the THX test units and most others on the market. Now ships with a cable

Cables included with your device for a D type probe may not work with this probe.
When calibrating you must use the HLDL number on your test block. Not the HLD number which is for a D or DC type probe.

For measurments in extremely confined spaces, at the base of grooves, gears etc.

Maximum Hardness of the Sample 950HV (Vickers)

Average Roughness of Sample     Ra: 1.6um (approx 200 Grit)

Impact probe tip Length          50mm

Impact Probe tip Diameter         4mm

Impact probe Weight           100g

Min weight of sample
       Of compact shape        -      5kg   /   11lbs
       On solid support           -      2kg   /  4.5lbs
       Coupled on plate          - 0.05kg   /  0.2lbs

Min thickness of sample
       Uncoupled                     - 25mm  /  .98inch
       Coupled                         - 3mm  /    .12inch
