C Type probe

$695.00 $145.00 Save $550.00
/
Shipping calculated at checkout.

We ship the same day an order is placed.

Monday to Friday.

Except major holidays.

Orders must be placed before the 4pm PST ( Seattle ) cutoff. After the cutoff, orders will ship the following day except on weekends, and major holidays, where the orders placed will ship on the Monday.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

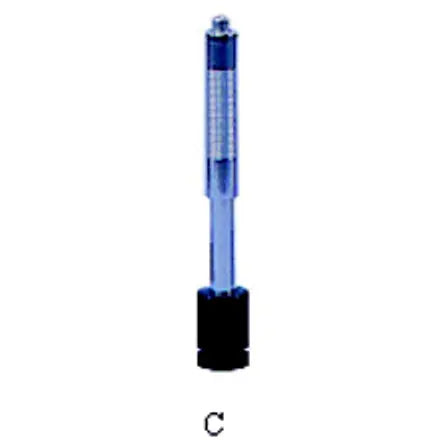

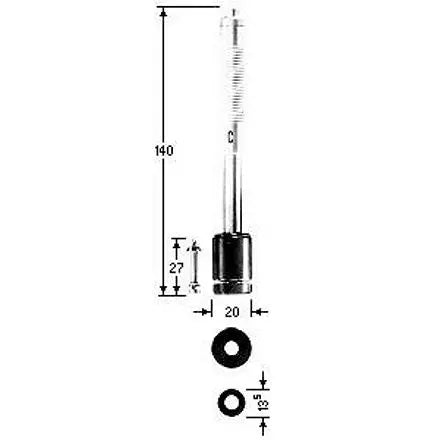

This is the C - Type Probe to fit the THX test units. Does not work with BPX301. Cable included for THX testers

It is for Surface hardened components, coatings, thin walled or impact sensitive components. ( small measuring indentation )

Min weight of sample
       Of compact shape        -  1.5kg   /  3.3lbs
       On solid support           -    .5kg   /  1.1lbs
       Coupled on plate          -   .02kg / .045lbs



Min thickness of sample
       Uncoupled                     - 15mm  / .50inch
       Coupled                         -   1mm  / .04inch
       Surface layer thickness -    .2mm / .008inch
