Description
Very rugged unit in an aluminum case. Note: Case color may change from the product photos. We ship either red or blue anodized cases.
NOTE: Rebound-type testers are NOT suitable for thin, lightweight parts like sheet metal, knives, bolts, nuts, washers, etc.
Please read these notes that apply to ALL Leeb-type testers from any manufacturer.
The D type probe comes standard with this device. Note you cannot exchange for another probe type.
If you are testing parts that are thinner than its capabilities, you might want to consider adding a C type probe.
Guaranteed lowest price anywhere.
We made a larger than normal volume purchase of these units to get the best price and pass the savings along to you. So this is a strictly limited time deal.
Many features that other testers don't have or if they do just some where this one has them all!!!. Advanced PC software included with bar charts, print capability, USB 2.0 interface, connect to all the options for probe types, C, G, DL etc.
Device conforms to the Standard ASTM A956-02 & DIN 50156 .
Specs
- Hardness scale HL, HB, HRB, HRC, HRA, HV, HS
- Memory 48～600 groups （impact times: 32～1）
- Measuring range HLD（170～960）
- Accuracy ±4HLD (760±30HLD) error of displayed value
- 4HLD (760±30HLD) repeatability of displayed value
- Standard Impact Device D
- Optional Impact Devices DC/D+15/G/C/DL
- Max. Workpiece Hardness 996HV( For Impact Devices D/DC/DL/D+15/C)
- Max. Workpiece Hardness 646HB( For Impact Device G)
- Min. Radius of Workpiece (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)
- Min. Workpiece weight 2~ 5kg on stable support
- 0.05~ 2kg with compact coupling
- Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)
- when coupled 1mm (Impact Device C)
- 10mm (Impact Device G)
- Min. thickness of hardened surface 0.8mm
- Power AA Size 1.5V
- Continuous Working time approx. 100 h (backlight off)
- Operating temperature 0~ 40℃
- Relative humidity ≤90%
- Overall dimensions 152×84× 34mm (main unit)
- Weight 0.3kg (main unit)
Features
- 2 year warranty on tester and probe. The impact body is considered a consumable item, and its life is dependent on material hardness and on the amount of use.

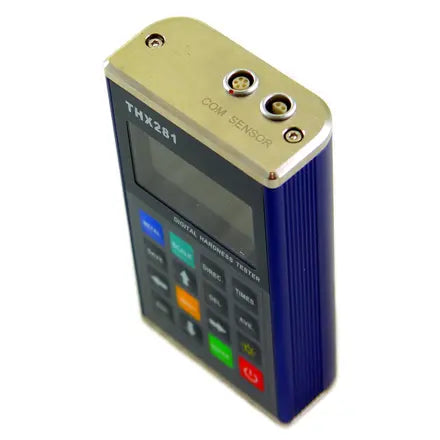

- Rugged aluminum case is drop resistant
- Membrane keyboard is waterproof.

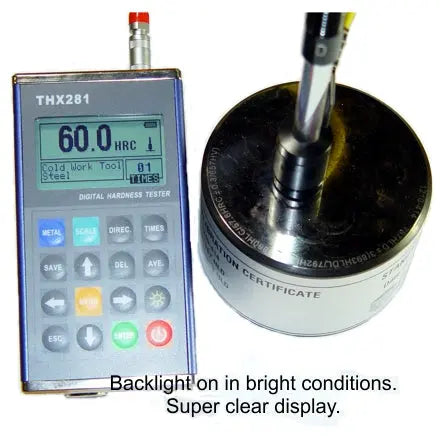

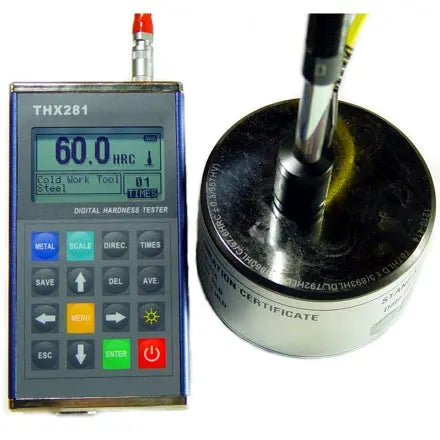

- Bright LCD display of 128×64 matrix with back-light.
- Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).
- Easy and convenient menu operation.
- Powerful PC software included free with computer connection via USB 2.0 interface. Download latest driver HERE
- 7 types of Optional Impact Device, with auto recognition. Universal D type standard and included
- Memory of 600 groups of data（impact times:32～1）.
- Upper and lower limits can be preset. Audible alarm.
- Material types for testing: Steel and Cast steel, Forged Steel, Cold Work Tool Steel, Stainless Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum Alloys, Brass (Copper-zinc alloys), Bronze (copper-aluminum/copper-tin alloys), Wrought Copper Alloys
- Print to USB Printer ( not included) automatically with each test or on demand.
- Powered by 2 AA batteries. Continuous working time ( no back light ) approx 100 Hrs
- Simple recalibration.
- Auto power off

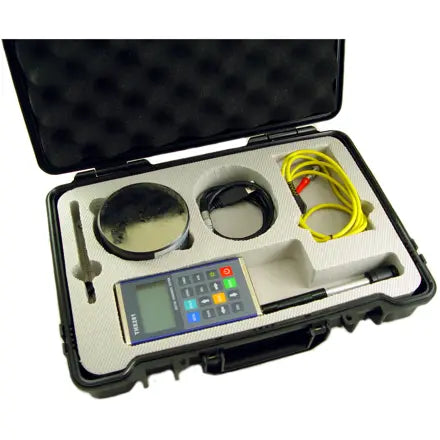

- Rugged Pelican type carry case
Download the manual by clicking here.
Included with purchase
|
Seq |
Name |
Qty |
Remark |
|
1 |
THL280 Main Unit |
1 |
Standard configuration |
|
2 |
2nd Gen Impact Device Type D |
1 |
Standard configuration |
|
3 |

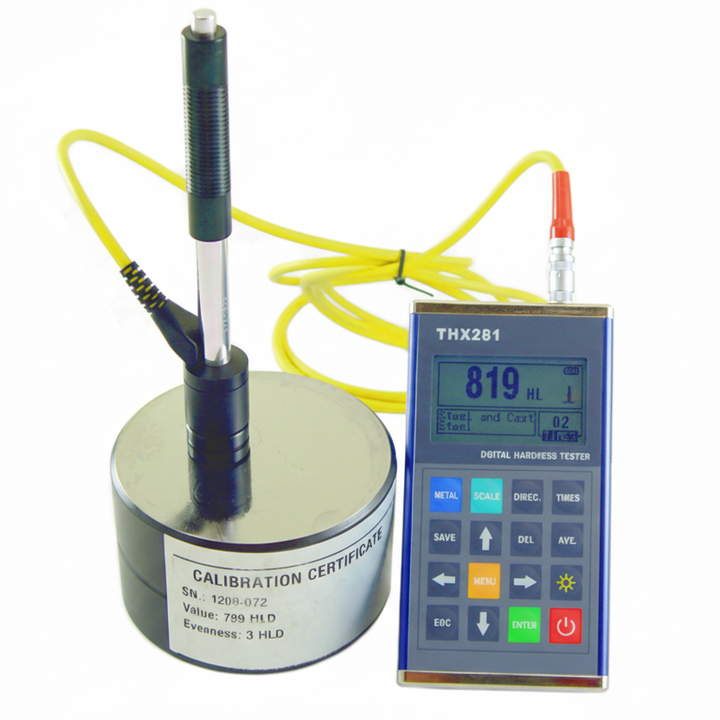

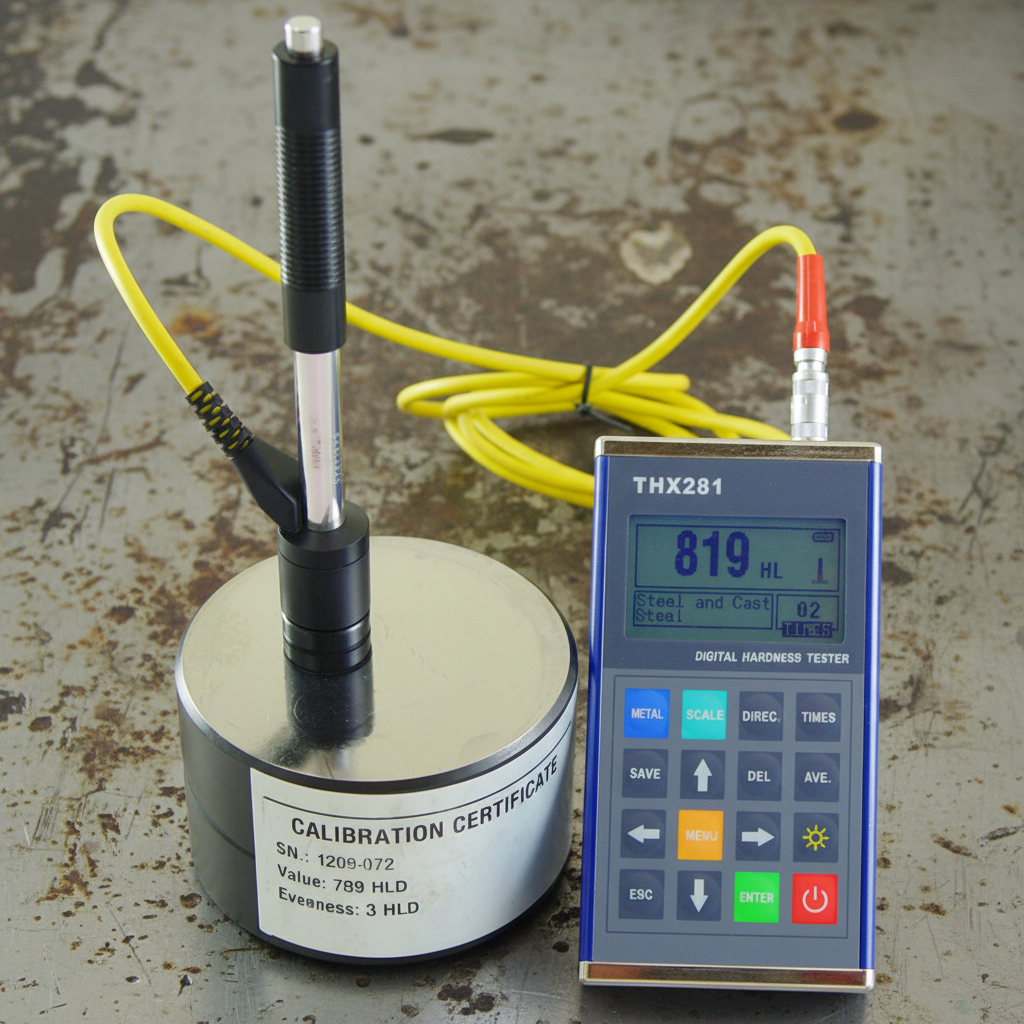

Leeb Standard Test Block |
1 |
Standard configuration |
|
4 |
Cleaning Brush |
1 |
Standard configuration |
|
5 |
Supporting Ring |
1 |
Standard configuration |
|
6 |
Communication Cable |
1 |
Included Free |
|
7 |
Manual |
1 |
Standard configuration |
|
8 |
Rugged Carrying Case |
1 |
Standard configuration |
|
9 |
THX281 DataPro Software |
1 |
Included Free |
Metals
| Materials | HV | HB | HRC | HRB | HSD | Tensile strength (MPa) |
| Steel & Cast Steel | 83-976 | 127-651 | 17.9-68.5 | 59.6-99.6 | 32.5-99.5 | See Table Below |
| Cold Work Tool Steel | 80-898 | 20.4-67.1 | ||||
| Stainless Steel | 85-802 | 85-655 | 46.5-101.7 | |||
| Grey Cast Iron | 93-334 | |||||
| Ductile Iron | 131-387 | |||||
| Cast Aluminum Alloys | 19-164 | 23.8-84.6 | ||||
| Brass | 40-173 | 13.5-95.3 | ||||
| Bronze | 60-290 | |||||
| Copper | 45-315 | |||||
| Forging Steel | 142-651 |
| Materials | No. | HLD | Tensile strength (MPa) |
| Mild Steel | 1 | 350~522 | 374~780 |
| High Carbon Steel | 2 | 500~710 | 737~1670 |
| Cr Steel | 3 | 500~730 | 707~1829 |
| Cr-V Steel | 4 | 500~750 | 704~1980 |
| Cr-Ni Steel | 5 | 500~750 | 763~2007 |
| Cr-Mo Steel | 6 | 500~738 | 721~1875 |
| Cr-Ni-Mo Steel | 7 | 540~738 | 844~1933 |
| Cr-Mn-Si Steel | 8 | 500~750 | 755~1993 |
| Super Strength Steel | 9 | 630~800 | 1180~2652 |
| Stainless Steel | 10 | 500~710 | 703~1676 |
Reviews
Reviews about THX281Plus Portable Hardness Tester with Software
Average rating:
Total reviews: 3
- Price
- Ease of Use
- Features
- Design
- Delivery Time
- Support
Great Price. Impeccable personal service over the phone. Fast shipping. We will definitely order again, if we require additional equipment. (Order # 3430)
- Price
- Ease of Use
- Features
- Design
- Delivery Time
- Support
I have been very pleased with the THX281 portable hardness tester. The ability to calibrate the unit is a huge advantage over the older EquoTip tester I have been using since 2001. (My order number 1108)
Videos
How to calibrate a THX281 portable hardness tester
on 17 Mar 2014
This is a short video on how to calibrate a THX281 portable hardness tester. Also shows how to change the language.
