Description
Pre-tariff price increase. We have a limited number of these left in stock before the price will increase by more than 30% . Tariff currently at 45%!!!

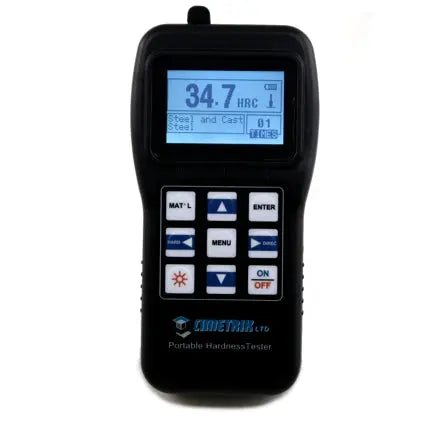

THX210 Portable Handheld Hardness Tester. Special PRICE!!! Limited time.
In stock in our Seattle, WA, warehouse.

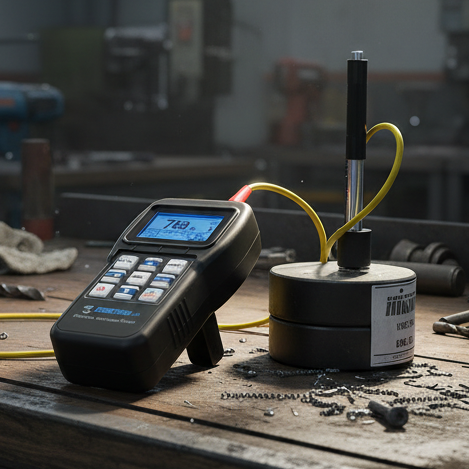

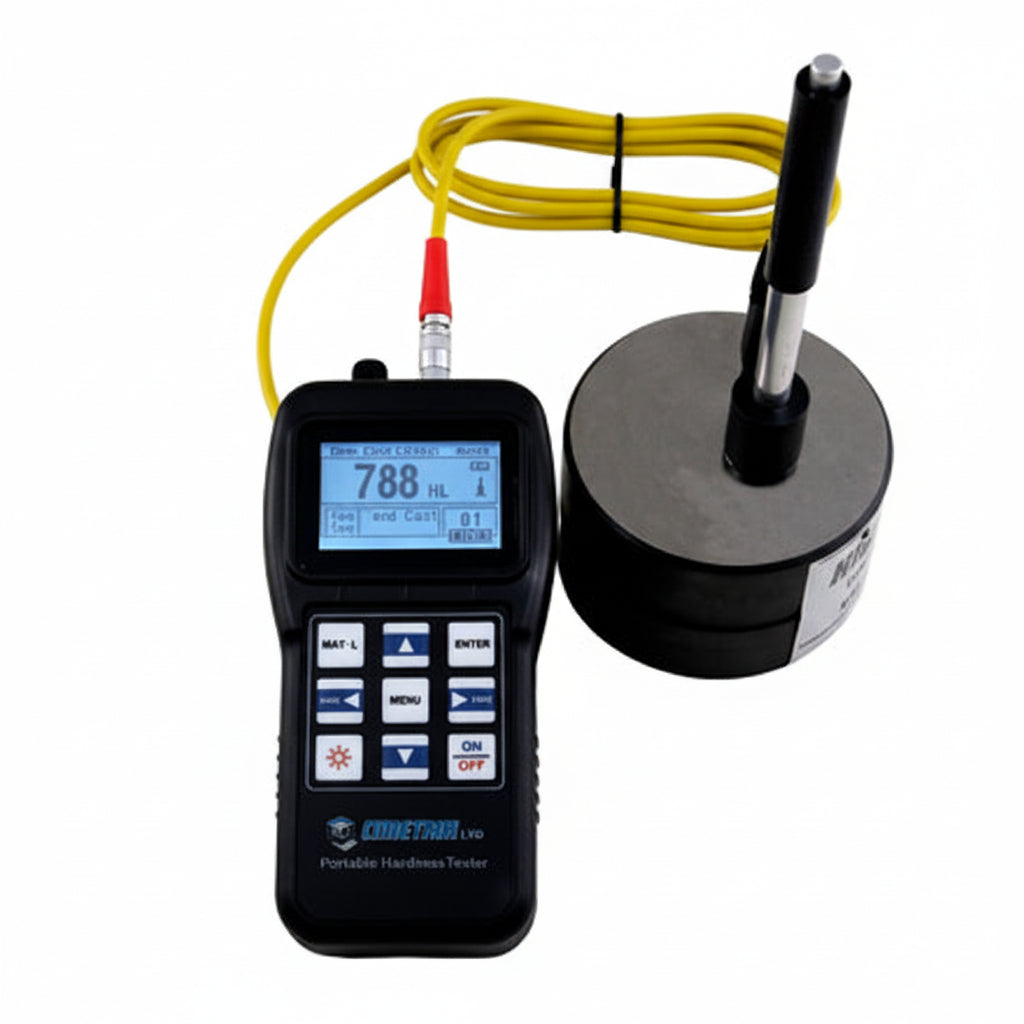

Photos show a calibration block. It is NOT included in the base price.
It is a low cost add-on that can be selected to add on this page before checkout.
Why an option? We sell a lot of these testers to companies that have purchased many of these devices. They don't need a cal block with every kit but can share the blocks.
Compare the Starrett tester that is the SAME PRODUCT.
It is sold for $2645!!! That is 500% more than our price.
NOTE: Rebound type testers are NOT suitable for thin, lightweight parts like sheet metal, knives, bolts, nuts, washers, etc.
Please read these notes that apply to ALL Leeb-type testers from any manufacturer.
The D type probe comes standard with this device. Note you cannot exchange for another probe type.
If you are testing parts that are thinner than its capabilities, you might want to consider adding a C type probe.
Stocked at our Seattle, WA, warehouse. Can ship today. See all shipping options at checkout. Even overnight for delivery the next business day.
-
2 year warranty
- Certification/Calibration laboratory test certificate

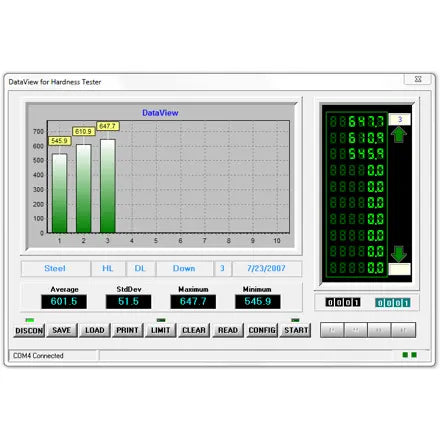

- USB interface with Free included software to upload, display, and print data from a PC.
- Hardness Scales: HL, HRC, HRB, HV, HB, HS
- Accuracy +/- 0.5%
- Repeatability Accuracy：HLD：±6 HRC：±1 HB：±4
- Measurable Material: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, aluminum casting (see Metals tab above)
- Optional Impact Device: C /DC / D+15 / DL/ G
- Automatic recognition of attached Probe Type

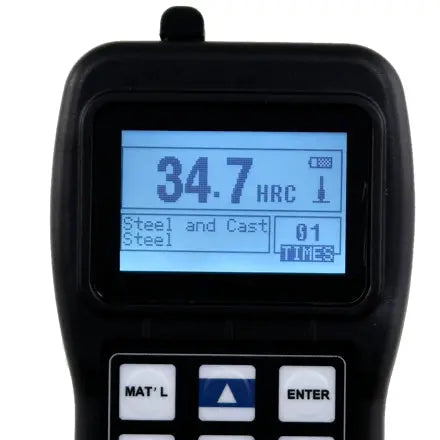

- Screen Display: hi contrast dot matrix LCD, backlight, and adjustable contrast
- Measuring Direction: Any direction 360°, even with the probe pointing up

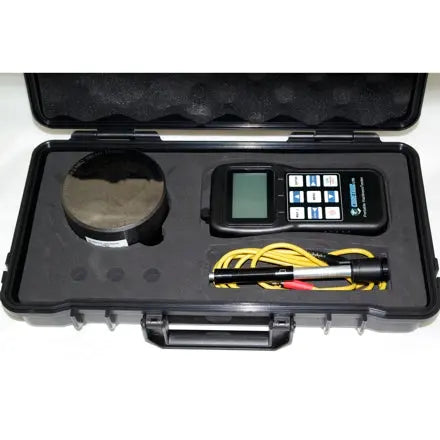

Items below are included in the kit
- Rugged hard shell carry case
- Calibration test block
- D type probe
- Test unit
- Instruction manual, warranty, and serial number card
- Cleaning brush
- Small and larger support rings
Download the user the User Manual
Metals
| Materials | HV | HB | HRC | HRB | HSD | Tensile Strength (MPa) |
| Steel & Cast Steel | 81-995 | 81-654 | 20.0-68.4 | 38.4-99.5 | 32.5-99.5 | 375-2639 |
| Alloy Tool Steel | 80-898 | 20.4-67.1 | 375-2639 | |||
| Stainless Steel | 85-802 | 85-655 | 19.6-62.4 | 46.5-101.7 | 740-1725 | |
| Grey Cast Iron | 63-336 | |||||
| Ductile Iron | 140-387 | |||||
| Cast Aluminum Alloys | 19-164 | 23.8-84.6 | ||||
| Brass | 40-173 | 13.5-95.3 | ||||
| Bronze | 60-290 | |||||
| Copper | 45-315 | |||||
| Forging Steel | 83-976 | 142-651 | 19.8-68.5 | 59.6-99.6 | 26.4-99.5 |
Probes
Optional Impact Devices
|
Impact device |
D |
DC |
DL |
D+15 |
C |
G |
||
|
Application |
For the majority of your hardness testing requirements. |
Use in very confined spaces, e.g. in holes, cylinders or for internal measurements on assembled machines. |
For measurements in extremely confined spaces or at the base of grooves. |
For measurements in grooves or recessed surfaces. |
Surface hardened components, coatings, thin walled or impact sensitive components (small measuring indentation). |
Solid components. E.g. heavy castings and forgings. |
||
|
Impact energy |
11Nmm |
11Nmm |
11Nmm |
11Nmm |
3Nmm |
90Nmm |
||
|
Mass of impact body |
5.5g |
5.5g |
7.3g |
7.8g |
3g |
20g |
||
|
Tip |
Diameter |
3mm |
3mm |
3mm |
2.78mm |
3mm |
5mm |
|
|
Hardness |
1600HV |
1600HV |
1600HV |
1600HV |
1600HV |
1600HV |
||
|
Material |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
||
|
Impact device |
Length |
147mm |
86mm |
202mm |
162mm |
141mm |
254mm |
|
|
Diameter |
20mm |
20mm |
20mm |
20 |
||||
Reviews
Reviews about THX210 Portable Hardness Tester Rockwell Brinell Vickers CIMETRIX
- Price
- Features
- Ease of Use
- Design
- Delivery Time
- Support
We purchased this hardness tester for checking larger parts that would not fit on our standard Rockwell testers. It has performed well for the applications that we needed. It was shipped in a timely manner and is cost-effective for the process. Not only that, but it will also work when we need to visit customers who want parts referenced without tearing down the equipment. The unit is easy to use and understand.
- Price
- Features
- Ease of Use
- Design
- Delivery Time
- Support
This is an awesome unit. Simple to use the entire shop can use this from the shop hand to owners. i will buy from CIMETRIX again. I just ordered a new test block!
- Price
- Features
- Ease of Use
- Design
- Delivery Time
- Support
A great, affordable, compact unit. So simple to use. The API has changed some requirements that caused me to find this product. It was affordable and fits in my travel kit. Will be a great asset to my business.
- Price
- Features
- Ease of Use
- Design
- Delivery Time
- Support
Great tester very accurate results. Take heed to the fact this is not for small parts or parts with thin cross section. If it weighs 10 plus pounds you will get accurate results! We had to get a Wilson type tester to do our smaller tooling parts.
As an engineer tasked with designing and qualifying oil and gas equipment, quality is paramount. This unit is great for providing and accurate gut check on components. It is fast, accurate and great for checking parts remotely. I would highly recommend it.
