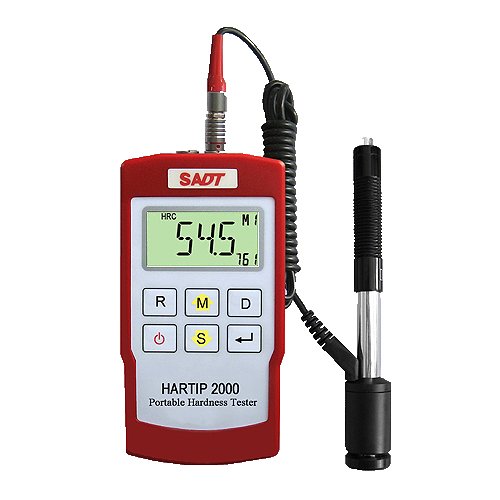

SADT HARTIP 2000
The SADT Hartip 2000 is an innovative portable Leeb hardness tester and the most accurate available.
NOTE: Rebound type testers are NOT suitable for thin, lightweight parts like sheet metal, knives, bolts, nuts, washers, etc.
Please read these notes that apply to ALL Leeb type testers from any manufacturer.
The device conforms to the Standard ASTM A956-02 & DIN 50156 .
Features:
- Universal impact direction mode.
- High accuracy: +/- 2HL (0.3% @HL800)
- Linear accuracy for any angles
- Dual values (Leeb value and one conversion value) can be displayed at the same time.
- Big LCD display with back-light
- Ten testing materials, including forged steel
- Tensile strength conversion
- RS232 so the tester can be connected to a PC to upload and then print the data
- Automatic power off
Download the manual by clicking HERE
Specs
Technical Parameters
| Accuracy | ± 2 HL = (± 0.3%) |
| Scales | HRC, HRB, HB, HV, HSD, MPa |
| Display | Bright and clear LCD display with back-light |
| Testing direction | All direction - 360deg |
| Optional Impact Device | DL, C, D+15, G, |
| Operating environment | Temperature ：-10～+40℃ Humidity: 20%～85% |
| Storage environment | Temperature ：-10～+40℃ Humidity:5%～95% |
| Dimensions | 124mm*67mm*30mm |
| Weight (g) | 240 |

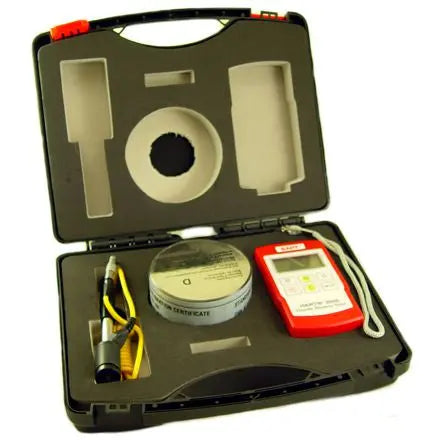

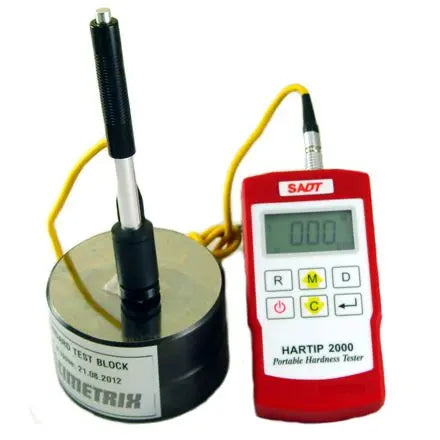

| Std Accessories | Display Unit, Impact Device D, Test Block, Little Support Ring, Cleaning Brush, Operation Manual ( online download ) |
| Standard | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
| Power Supply | 1.5V AA alkaline battery x 2 |
Metals
| IMPACT DEVICE D | HLD: 170-960 | |||||
| Materials | HV | HB | HRC | HRB | HSD | Tensile strength (MPa) |
| Steel & Cast Steel | 80-940 | 80-647 | 20.0-67.9 | 59.6-99.5 | 32.5-99.5 | 375-1710 |
| Cold Work Tool Steel | 80-898 | 20.5-67.1 | 1170-2639 | |||
| Stainless Steel | 85-802 | 85-655 | 19.6-62.4 | 46.5-101.7 | 740-1725 | |
| Cast Iron w/lamellar graphite | 93-334 | |||||
| Cast Iron w/nodular graphite | 131-387 | |||||
| Cast Aluminum Alloys | 80-195 | 30-159 | 23-85 | |||
| Brass | 40-173 | 13.5-95.3 | ||||
| Bronze | 60-290 | 14-100 | ||||
| Copper | 45-315 | 14-100 | ||||
| Forging Steel | 142-651 | |||||
| Rolling Steel | 140-651 | |||||
| IMPACT DEVICE DL | LDL: 560-950 | |||||
| Materials | HV | HB | HRC | HRB | HSD | |
| Steel | 80-950 | 81-646 | 20.6-68.2 | 37.0-99.9 | 30.6-96.8 | |
| IMPACT DEVICE D+15 | LD+15: 300-900 | |||||
| Materials | HV | HB | HRC | HRB | HSD | |
| Steel | 80-937 | 80-638 | 19.3-67.9 | 33.3-99.3 | ||
| Cold Work Tool Steel | 80-835 | 19.8-68.2 | ||||
| IMPACT DEVICE G | LG: 300-750 | |||||
| Materials | HV | HB | HRC | HRB | HSD | |
| Steel | 90-646 | 47.7-99.9 | ||||
| GC. Iron | 92-326 | |||||
| NC.Iron | 127-364 | |||||
| IMPACT DEVICE C | LC: 350-950 | |||||
| Materials | HV | HB | HRC | HRB | HSD | |
| Steel | 80-996 | 80-683 | 20.0-69.5 | 31.9-102.3 | ||
| Cold Work Tool Steel | 100-941 | 20.7-68.2 | ||||
Probes
Optional Impact Devices
|
Impact device |
D |
DC |
DL |
D+15 |
C |
G |
||
|
Application |
For the majority of your hardness testing requirements. |
Use in very confined spaces, e.g. in holes, cylinders or for internal measure‐ ments on assembled machines. |
For measurements in extremely confined spaces or at the base of grooves. |
For measurements in grooves or recessed surface. |
Surface hardened components, coatings, thin walled or impact sensitive components (small measuring indentation). |
Solid components. E.g. heavy castings and forgings. |
||
|
Impact energy |
11Nmm |
11Nmm |
11Nmm |
11Nmm |
3Nmm |
90Nmm |
||
|
Mass of impact body |
5.5g |
5.5g |
7.3g |
7.8g |
3g |
20g |
||
|
Tip |
Diameter |
3mm |
3mm |
3mm |
2.78mm |
3mm |
5mm |
|
|
Hardness |
1600HV |
1600HV |
1600HV |
1600HV |
1600HV |
1600HV |
||
|
Material |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
||
|
Impact device |
Length |
147mm |
86mm |
202mm |
162mm |
141mm |
254mm |
|
|
Diameter |
20mm |
20mm |
20mm |
20 |
||||
