How to Replace Thickness Gauge Probe

A thickness gauge that suddenly reads erratically in the field usually has a simple cause - a worn probe, cable damage, or a connector issue. If you are looking for how to replace thickness gauge probe components without creating a calibration problem, the job is usually straightforward, but only if you confirm the exact probe type and follow the right sequence.

In ultrasonic thickness measurement, the probe is not just an accessory. It is part of the measurement system. The gauge, probe, cable, wear face, delay line if applicable, and couplant all affect performance. That is why probe replacement is less about swapping parts and more about restoring the instrument to known working condition.

Before you replace a thickness gauge probe

Start by identifying the probe you are actually using. Many thickness gages look similar across brands and model lines, but the probe frequency, element size, connector style, and application range can differ. A standard dual-element contact probe for corrosion work is not interchangeable with every high-frequency precision probe, even if the connector appears to fit.

Check the instrument label, user manual, or the markings on the probe body. You want the original part number if possible. If that is missing, confirm the gauge model, measurement application, and connector type before ordering a replacement. This matters most when you are measuring thin wall, coated material, high-temperature surfaces, or small diameters, where the wrong probe may still connect but produce poor or inconsistent readings.

It also helps to determine whether the probe is the real failure point. If the readings drop out only when the cable flexes, the cable may be damaged rather than the transducer face. If the gauge powers up but will not zero correctly, the issue could be probe wear, connector contamination, or an incorrect setup file. Replacing the probe without checking those basics can waste time and leave the original problem unresolved.

How to replace thickness gauge probe correctly

Power the instrument off first. That sounds obvious, but it prevents accidental setting changes and reduces the chance of stressing the connector during handling. If the gauge has a removable battery or external power source and you are working in a shop environment, disconnect it.

Next, inspect the existing connection before removal. Some thickness gages use push-in connectors, others use threaded locking collars, and some use dual connectors for separate transmit and receive paths. Do not pull on the cable. Grip the connector body and release it the way the manufacturer intended. Twisting or yanking the cable is one of the fastest ways to damage a perfectly good port.

Once the old probe is removed, inspect the gauge connector and the replacement probe connector under good light. Look for bent pins, worn O-rings, oil contamination, metal fines, or couplant residue. In industrial settings, debris in the connector is common. If you see contamination, clean it carefully with a method approved for instrument connectors. Avoid aggressive cleaning that can leave fibers behind or damage contacts.

Now connect the replacement probe. Align the keyway or pin pattern exactly. If it does not seat easily, stop and recheck orientation. For threaded connectors, tighten to a firm hand fit only unless the manufacturer specifies otherwise. Over-tightening can damage threads or the connector body, especially on portable field instruments that are connected and disconnected often.

After installation, route the cable so it is not sharply bent at the connector. A tight bend near the strain relief may not fail immediately, but it shortens cable life and can create intermittent signal loss during use.

Verify compatibility before putting the gauge back in service

This is where many replacement jobs go wrong. The probe may be physically installed, but the gauge setup may still be configured for the old transducer or for a different material application. On many ultrasonic thickness gages, you need to confirm probe selection, velocity settings, dual-element mode if applicable, and any stored calibration parameters.

If your instrument supports multiple transducer profiles, choose the exact probe type from the menu. If it does not, manually verify the measurement setup. The operating frequency and intended thickness range of the replacement probe should match the application. For example, a lower-frequency probe may perform better on corroded or attenuative material, while a higher-frequency probe may be needed for thin sections and better resolution. The trade-off is that a probe optimized for one job is often less effective on another.

If you are replacing a probe with the same manufacturer part number, setup is usually simpler. If you are changing to an equivalent or alternate probe, verify with extra care. Equivalent does not always mean identical in response.

Zeroing and calibration after probe replacement

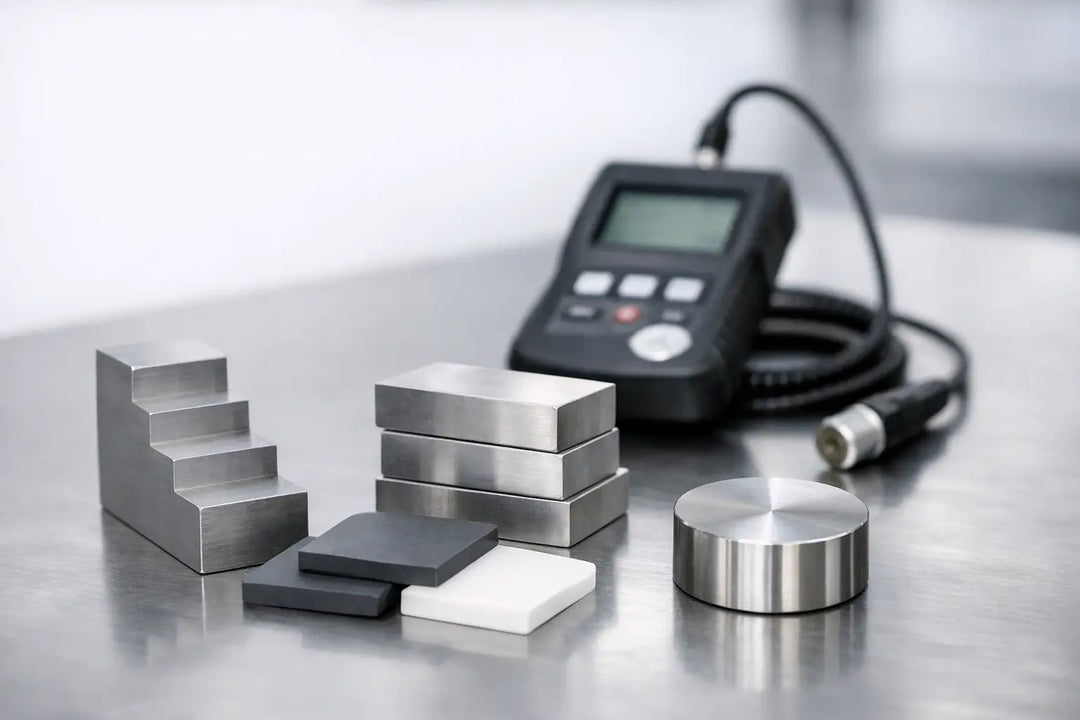

Any time you replace a thickness gauge probe, treat the instrument as unverified until it passes a zero and calibration check. At minimum, perform a probe zero according to the gauge procedure. This is commonly done using the instrument's zero disk, a calibration block, or the supplied reference standard.

Apply a consistent amount of couplant during the zero process. Too little couplant can create poor acoustic transmission. Too much can make handling messy and inconsistent. Use the couplant type appropriate for the application, especially if you work around elevated temperatures or rough surfaces.

After zeroing, verify calibration on a known standard that is close to your actual inspection range. If you normally measure 0.250 inch wall thickness, do not only check on a much thicker block. Calibration confidence improves when the reference standard is relevant to the job. If possible, check more than one thickness point.

Watch for stable readings, repeatability, and proper signal response. A gauge that reaches the correct number once but fluctuates on repeated measurements still has a problem. That could mean an incompatible probe, worn test surface, poor couplant, cable fault, or internal instrument issue.

Common problems after replacing the probe

If the gauge does not perform correctly after replacement, the most likely causes are usually practical rather than complex. The connector may not be fully seated, the selected probe profile may be wrong, the zero was skipped, or the reference calibration is off.

Another common issue is assuming that any dual-element probe in the same frequency range will behave the same way. It will not. Element spacing, wear face geometry, and damping characteristics affect response. This matters in corrosion surveys and on curved surfaces where probe design influences how easily you get a stable echo.

Surface condition also matters more than many users expect. A new probe will not fix a dirty, heavily scaled, or badly pitted contact point. If the test surface is rough, clean it first and use enough couplant to maintain proper contact. On very rough corrosion work, it may take a probe specifically intended for that environment.

If the old probe failed because of cable abuse, look at how the instrument is being carried and stored. Repeated strain near the connector, wrapping the cable too tightly, or leaving the probe loose in a kit with heavy accessories can lead to recurring failures. Replacing the part without changing handling practices usually means another replacement later.

When replacement is not enough

Sometimes a probe change does not restore normal operation because the problem is inside the gauge. If you have installed the correct replacement probe, confirmed the setup, completed zero and calibration checks, and still get no signal or unstable measurements, the instrument may need service.

That is especially true if multiple known-good probes behave the same way on the same gauge. At that point, suspect the instrument connector, pulser-receiver circuitry, menu configuration, or firmware-related issues depending on the model. For a production environment, it is usually faster to isolate the fault with a known-good gauge and known-good probe rather than continuing trial and error in the field.

Choosing the right replacement probe

If you are sourcing a replacement, prioritize exact compatibility over convenience. Match the brand, gauge model, connector style, probe type, frequency, and intended application. If your team runs multiple thickness gages, standardizing probes where possible can simplify spares inventory, but only when the applications truly overlap.

For industrial buyers, stocked replacement parts matter because downtime is expensive. A supplier with the right probe, cable, and related accessories available for same-day shipping can keep a corrosion survey, incoming inspection job, or field service visit on schedule. CIMETRIX Ltd focuses on that kind of practical availability for test and measurement users who need instruments and supporting components ready to ship.

Replacing a thickness gauge probe is usually a short task, but the right outcome is not just getting the connector attached. The real goal is getting back to reliable measurement with a probe that matches the job, a gauge that is correctly configured, and a calibration check that gives you confidence before the next reading counts.
