Calibration Block Selection Chart Explained

If your hardness tester is reading high on one job and low on the next, the problem is often not the instrument. It is the reference standard. A calibration block selection chart helps you match the tester, test method, material range, and geometry to the correct block before you start checking accuracy.

For maintenance teams and QC departments, that matters because a wrong block can waste time, trigger false troubleshooting, and put valid readings in doubt. Portable hardness testing is practical and fast, but only if the verification step is set up correctly. The chart is not just a catalog convenience. It is a control point in the inspection process.

What a calibration block selection chart actually does

A calibration block selection chart is a reference tool that narrows your choice of test blocks based on the instrument and application. In most cases, it organizes selection around four variables: hardness method, nominal hardness range, block material, and block size or shape.

That sounds simple, but each variable affects whether the comparison is meaningful. A Leeb rebound tester does not verify the same way as an ultrasonic contact impedance tester. A block for steel does not always represent the response you will see on cast iron, aluminum, or a thin hardened part. Even when two blocks carry similar hardness numbers, they may not be interchangeable in practice.

A good chart reduces that confusion. It gives the buyer or technician a faster path to the block that fits the instrument they already use in the field or on the shop floor.

How to read a calibration block selection chart

Most users start with the hardness method. That is the right place to begin because the block has to match the testing principle first. If you are using a Leeb hardness tester, the chart should point you toward Leeb test blocks intended for rebound verification. If you are using UCI or another ultrasonic hardness tester, the block should be suitable for that contact method and hardness range.

After method, look at the target hardness range. A block that sits far outside your normal work range may confirm that the instrument functions, but it may not tell you much about performance where your production parts actually fall. If your team commonly checks hardened tool steel around the upper HRC range, a mid-range reference block is not the strongest verification choice.

Material is the next filter. This is where many selection mistakes happen. Portable hardness instruments are influenced by elastic modulus, mass, microstructure, and surface condition. Steel reference blocks are the standard choice in many applications, but not every job is a steel job. If the chart separates blocks by material family, pay attention to that distinction.

Finally, confirm the physical format. Some blocks are intended for bench use, while others are chosen because they better represent curved or smaller contact areas. The chart may also reflect probe or impact device compatibility. That compatibility is not a minor detail. A block that does not suit the probe geometry can lead to poor contact and misleading readings.

The main block categories buyers typically compare

For most industrial buyers, the selection process comes down to portable method compatibility.

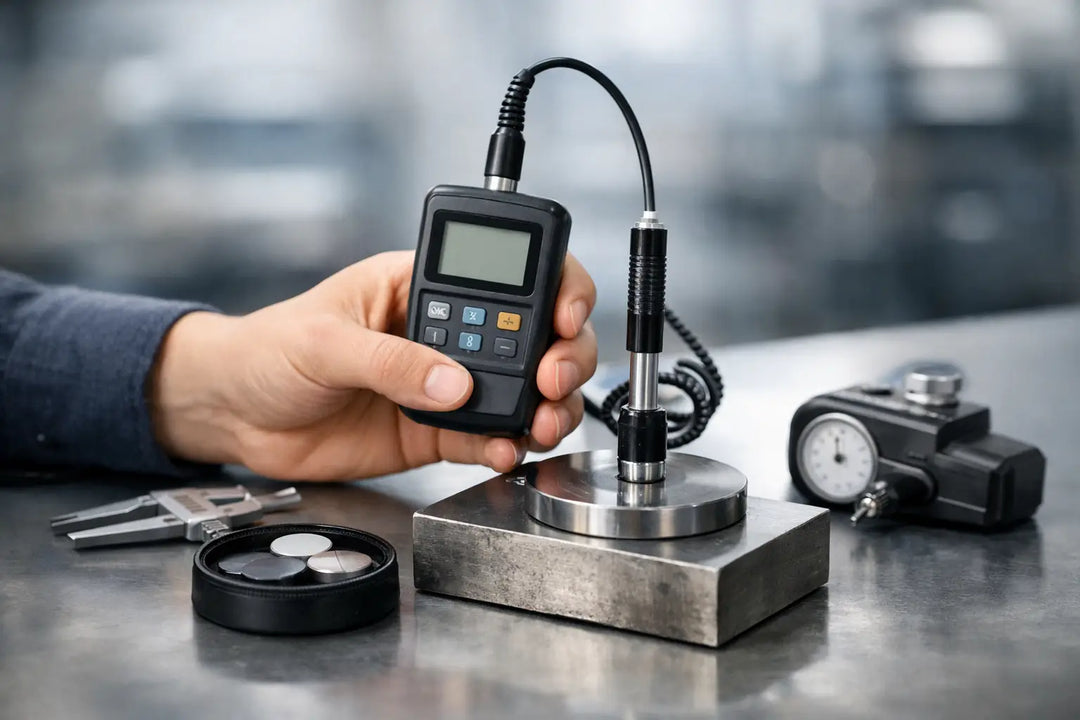

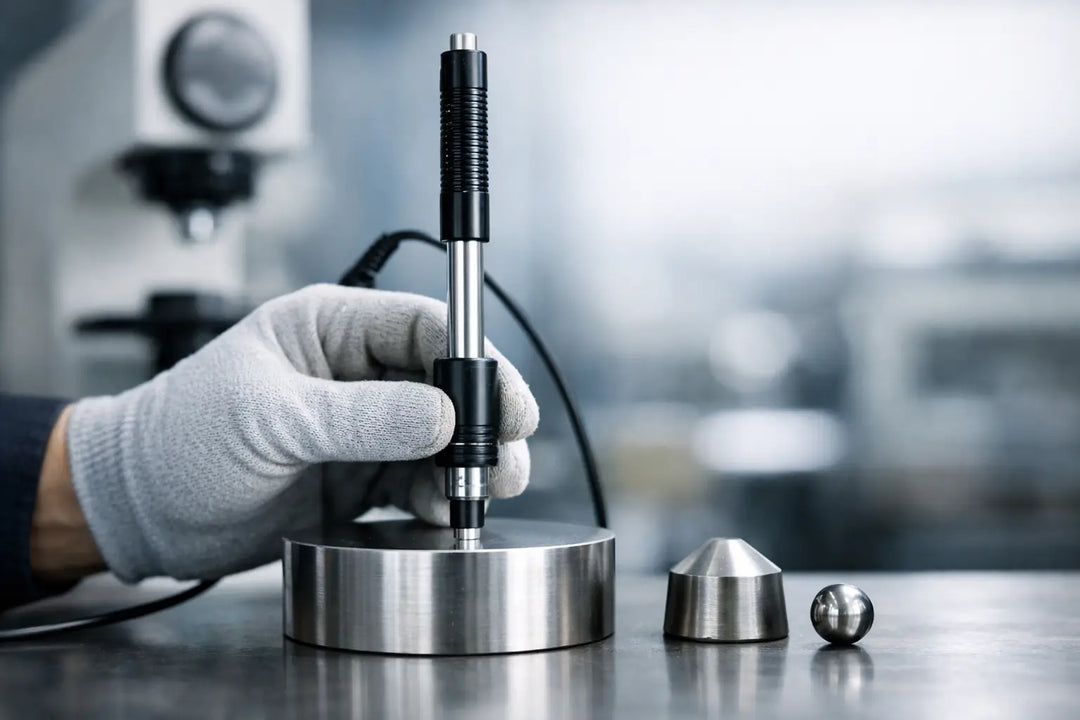

Leeb blocks in a calibration block selection chart

Leeb testers rely on rebound energy, so the block has to provide a stable and appropriate test surface for that impact method. Charts for Leeb blocks often separate options by hardness value and by impact device type, such as D or other variants. That matters because different impact bodies can behave differently on the same surface.

With Leeb testing, mass and rigidity are part of the measurement environment. A block that works well for routine instrument checks may still not represent a lightweight production part. So the chart helps for verification, but it does not replace application judgment.

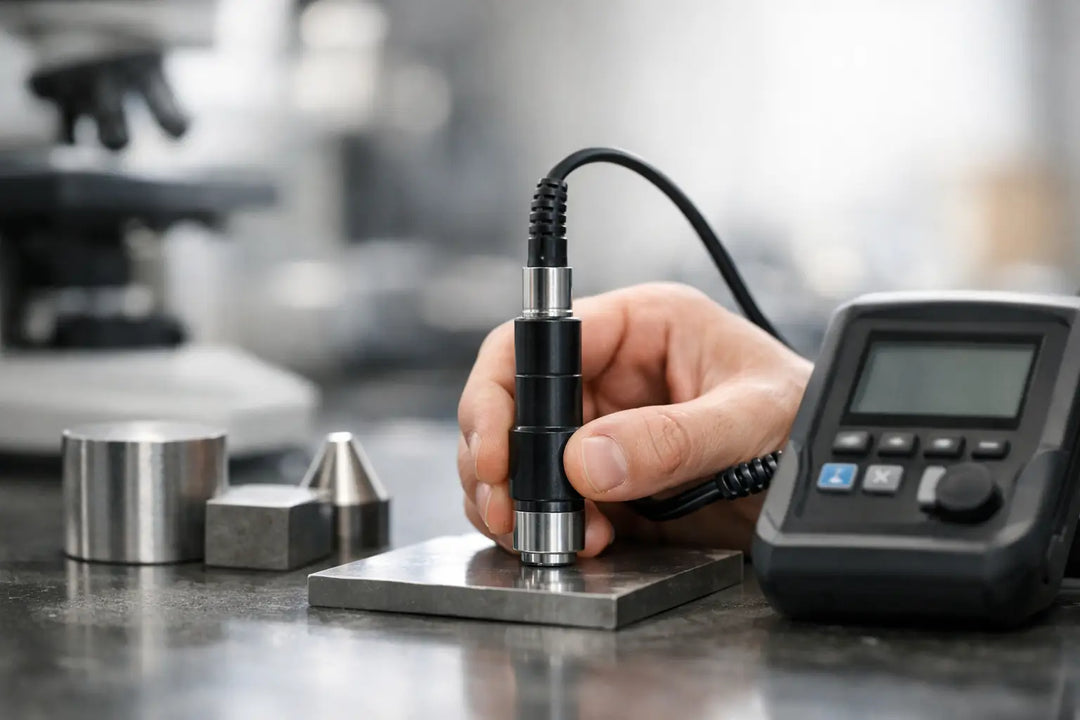

UCI and ultrasonic blocks

Ultrasonic hardness testing depends on contact force and the interaction of the vibrating rod with the material. That makes surface finish, probe condition, and material response especially important. A calibration block selection chart for UCI systems should align the block with the probe load and the expected hardness scale.

This is one area where users sometimes overgeneralize. A UCI block selected for polished steel verification may not tell you enough about rougher or structurally different workpieces. The chart gets you close, but your inspection procedure still needs to reflect the actual part condition.

Rockwell, Brinell, and Vickers reference blocks

Some buyers use the chart while sourcing reference blocks for benchtop or comparative verification needs across conventional hardness methods. Here the chart typically sorts by scale, nominal value, and certified tolerance. The key point is traceability and scale-specific suitability. A Rockwell C block is not a general-purpose hardness block just because the number looks close to another scale.

If your facility works across multiple methods, the chart can help prevent cross-method mix-ups. That is useful in plants where purchasing and inspection are handled by different people.

Why material match matters more than many users expect

If you only remember one thing from any calibration block selection chart, make it this: the closest number is not always the closest match.

Portable hardness methods respond to more than hardness alone. Steel, stainless, cast materials, and nonferrous alloys can produce different behavior under the same test principle. This is especially relevant when users are checking weld zones, heat-affected areas, forgings, castings, or thin-wall sections.

A steel block is often the default because it is widely available and broadly useful. But if your routine work involves materials with very different characteristics, a generic block may only verify the instrument at a basic level. It may not verify the full measurement setup for your real application. That trade-off is acceptable in some maintenance environments and not acceptable in others.

When one block is enough, and when it is not

Some teams want a single block that covers everything. That is understandable, especially when speed and budget matter. If the tester is used in a narrow range on similar steels, one properly matched block may be enough for daily confidence checks.

If the instrument is shared across departments, materials, or hardness ranges, one block usually becomes a compromise. You may need multiple blocks to bracket low, medium, and high ranges, or separate blocks for different methods and materials. The calibration block selection chart is helpful here because it shows where a single-block approach starts to break down.

The same logic applies to service organizations. If your technicians travel to different sites and inspect mixed assets, carrying one reference block may be convenient but limited. A better setup is often a small kit aligned to the jobs you actually see.

Common selection mistakes

The most common mistake is choosing by hardness number alone. The second is ignoring device or probe compatibility. The third is treating a calibration block as a substitute for correct surface preparation and operator technique.

Another issue is buying a block with the right method but the wrong practical range. If your production work lives near the high end of hardness and the block sits in the middle, you may miss drift that becomes obvious only where you actually test. A chart helps avoid that by keeping the selection tied to your real inspection window.

Certification is another point to check. For internal trend monitoring, some users accept a simpler verification approach. For controlled quality programs, customers often need certified blocks with clear documentation. The chart may not carry all document details, so the selection step should include that review.

How buyers should use the chart before ordering

Start with the instrument model and testing method. Then identify the materials and hardness ranges your team checks most often. After that, verify any probe, impact device, or scale-specific requirements. Once those basics are clear, the calibration block selection chart becomes a fast filter instead of a guessing tool.

For procurement staff, this process prevents the common problem of ordering a technically valid block that does not fit the field team’s workflow. For technicians, it reduces repeat purchases and unnecessary troubleshooting. For both groups, stocked inventory matters because verification accessories are often ordered only when a tester is already down, overdue, or about to go into service.

That is why industrial suppliers with focused hardness testing inventory are often more useful than broad general catalogs. The value is not just having a block in stock. It is having the right category alignment for portable hardness methods, replacement parts, and verification accessories in one place.

If you are selecting blocks for active field use, treat the chart as part of your inspection setup, not as an afterthought at checkout. The right match keeps your readings credible, your operators moving, and your tester ready when the next job is on the bench.
