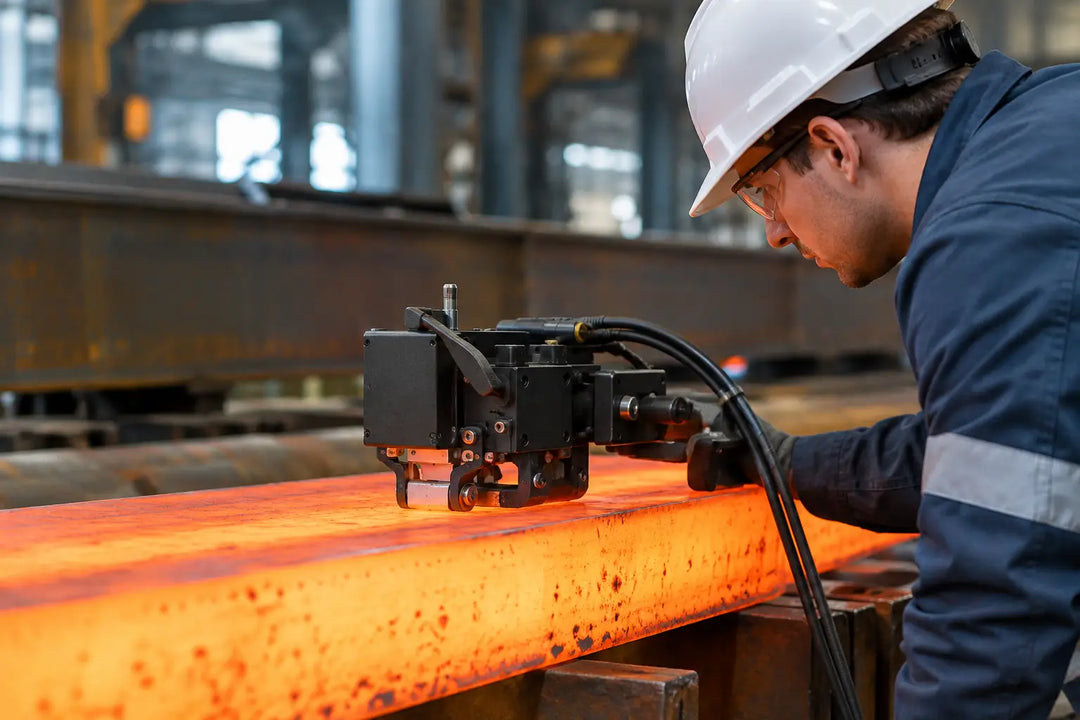

Can EMAT Inspect Hot Steel? Limits and Setup

A hot plate, billet, pipe, or weld does not wait for a conventional ultrasonic inspection setup. Water-based couplant can flash off, access can be unsafe, and waiting for cooldown can interrupt production. So, can EMAT inspect hot steel? Yes, in many applications, but only when the probe design, temperature range, inspection mode, and mechanical setup match the job.

EMAT, or electromagnetic acoustic transducer, technology generates ultrasonic waves in conductive material without direct liquid couplant. That makes it a practical option for selected high-temperature steel inspections where conventional contact probes are slow, inconsistent, or unsuitable. It is not a blanket replacement for every hot inspection method. Signal strength, lift-off, surface condition, alloy type, and the actual steel temperature still determine whether the result is usable.

Can EMAT Inspect Hot Steel Without Couplant?

An EMAT works by combining a magnetic field with an induced electrical current in the test material. The interaction creates ultrasonic energy within the steel. Because the sound is generated in the material rather than transferred through a couplant layer, the probe can operate with a small air gap between its face and the surface.

That air gap is the key advantage for hot steel. A conventional ultrasonic transducer usually needs consistent acoustic coupling. On a hot, scaled surface, maintaining that coupling can be difficult and can expose the operator to hot workpieces, steam, and degraded couplant. An EMAT probe can inspect without these coupling problems, provided the gap remains controlled and the probe is rated for the operating temperature.

The practical answer is not simply that EMAT can inspect hot steel. It can inspect hot steel when the system is engineered for the specific temperature and test geometry. A room-temperature EMAT probe placed near a hot product may lose performance or suffer permanent damage if its magnets, coil insulation, adhesives, cable, or housing exceed their temperature limits.

What Limits EMAT Inspection on Hot Steel?

Temperature affects both the inspection hardware and the material response. The stated maximum temperature for an EMAT system should be treated as a system limit, not just a probe-face limit. Verify the probe, lead cable, connectors, scanner components, and any positioning fixture before placing the equipment in service.

Probe temperature rating

High-temperature EMAT probes may use heat-resistant coil materials, protective wear faces, thermal barriers, and cooling provisions. Permanent magnets also require careful selection. At elevated temperatures, a magnet can lose magnetic strength. If that loss is irreversible, probe sensitivity may not return after the inspection is finished.

Probe positioning matters as much as the nominal rating. A probe held close to a red-hot surface can absorb radiant heat even if it never touches the steel. A fixture that maintains standoff, minimizes exposure time, or adds air cooling can protect the probe and improve repeatability.

Steel temperature and magnetic properties

Many EMAT applications on carbon and low-alloy steel use magnetostrictive effects along with Lorentz-force generation. As the steel temperature changes, the material's magnetic behavior changes as well. Near the Curie temperature, ferromagnetic steel loses its strong magnetic properties. This can substantially change EMAT generation efficiency and signal behavior.

For common carbon steel, the Curie temperature is roughly 1,410 degrees F, although composition affects the value. Inspection near that range requires specialized validation and should not be assumed to behave like inspection at lower process temperatures. Austenitic stainless steels and other nonferromagnetic alloys also require a different EMAT approach than ferritic steel.

Surface scale, lift-off, and geometry

EMAT does not require couplant, but it is not immune to surface condition. Heavy oxide scale, uneven mill scale, spatter, deep corrosion, and rough weld profiles increase probe lift-off and make the magnetic field less consistent. The result may be lower amplitude, variable time-of-flight readings, or missed small discontinuities.

A small, stable gap is normally preferable to a large, changing one. In automated work, a spring-loaded holder, guide wheels, or a purpose-built scanner can hold the probe at a repeatable distance. On manual inspections, operator technique and surface preparation have a larger effect on the result.

Curved pipe, narrow strip, corners, and weld crowns also change field distribution and sound paths. The probe must be selected for the surface and wave mode, not only for material temperature.

Choosing an EMAT Mode for the Inspection Objective

EMAT equipment is used for more than one type of ultrasonic measurement. The inspection objective should determine the mode and probe configuration.

For thickness measurement, a longitudinal-wave or shear-wave approach may be used to measure remaining wall in hot pipe, plate, or process equipment. High-temperature thickness monitoring is useful when cooldown is costly or when corrosion and erosion trends must be tracked during operation.

For crack detection, shear horizontal waves are often valuable because they can travel along or near a surface and are sensitive to certain crack orientations. Guided-wave arrangements may be used for longer-range screening in suitable geometries. For weld inspection, the probe angle, wave mode, scan path, and acceptance criteria must be defined around the expected flaw type and weld configuration.

Do not select an EMAT solely because the target is hot. Start with the required measurement: wall thickness, laminations, surface-breaking cracks, weld discontinuities, or material characterization. Then confirm that an EMAT mode offers adequate coverage and sensitivity for that target.

Set Up a Hot-Steel EMAT Inspection Correctly

A controlled setup prevents misleading readings. First, record the steel grade, expected temperature range, surface condition, thickness range, and access limitations. This establishes whether the inspection is technically suitable before a probe reaches the workpiece.

Next, use a calibration standard or representative reference sample that reflects the actual part as closely as practical. Temperature changes ultrasonic velocity. A thickness calibration made on cool steel may introduce error when used on steel at process temperature. When exact temperature compensation is not available, validate readings against known dimensions or a representative heated sample.

Set lift-off with a defined mechanical arrangement. This may be a fixed standoff shoe, guide system, or scanner fixture. Avoid allowing the probe to drag unpredictably across rough scale, especially when consistent amplitude is needed for flaw detection.

Before production scanning, collect baseline signals from sound areas. Confirm gate positions, signal-to-noise ratio, repeatability, and the response from known reflectors if available. For flaw work, establish sensitivity using an appropriate reference reflector rather than relying on a general gain setting.

Document the probe model, instrument settings, temperature, scan direction, surface condition, and calibration method. This information is especially useful when comparing readings between shifts, tracking wall loss over time, or investigating a production change.

When EMAT Is the Better Choice, and When It Is Not

EMAT is often a strong fit where couplant-free inspection, high surface temperature, automation, or dry scanning provides a clear operational advantage. Examples include hot pipe wall monitoring, plate inspection, rail inspection, weld-area screening, and process-line applications where stopping for cooling is impractical.

It may be the wrong choice when the expected discontinuities are very small and the available EMAT signal-to-noise ratio is marginal, when the surface is too irregular to maintain lift-off, or when the target alloy and temperature reduce transduction efficiency. Conventional ultrasonics, phased-array methods, radiography, eddy current testing, or visual examination may provide better results depending on the defect mechanism and access.

Cost is also a real consideration. High-temperature EMAT probes and fixtures can cost more than standard contact transducers. That cost may be justified when reduced downtime, faster inspection, or removal of couplant handling improves the process. It is less justified when the part can be safely inspected after a short cooldown with an existing conventional ultrasonic setup.

Equipment and Operator Safety

Hot-steel inspection is a thermal-exposure task, not just an NDT task. Establish a safe approach distance, use appropriate personal protective equipment, and protect cables from radiant heat and sharp edges. Keep the instrument itself outside the hot zone whenever possible. Extension cables and remote positioning can reduce exposure, but their compatibility with the EMAT system must be confirmed.

Inspect probe faces, cables, and connectors after each hot inspection cycle. Heat damage may appear as unstable signal amplitude, intermittent triggering, insulation discoloration, or reduced magnetic holding force. Replacing worn spares before they fail in service is generally less disruptive than troubleshooting an intermittent inspection result during production.

A successful hot-steel EMAT inspection begins with a representative trial. Verify the signal on the actual alloy, at the actual operating temperature, with the intended standoff and scan arrangement. That one controlled test provides a far better basis for equipment selection than a temperature rating alone.
